1078A Butterfly Valve Wafer Type PN 1.6 with SG Iron Disc - Gear Operated

Get a Price/Quote

Product Details:

Usage Industrial
Pressure High Pressure
Media Water
Color Black, Green
Working Temperature High
Warranty Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1078A Butterfly Valve Wafer Type PN 1.6 with SG Iron Disc - Gear Operated Price And Quantity

Minimum Order Quantity 1 Unit

1078A Butterfly Valve Wafer Type PN 1.6 with SG Iron Disc - Gear Operated Product Specifications

Color Black, Green
Usage Industrial
Warranty Yes
Pressure High Pressure
Media Water
Working Temperature High

1078A Butterfly Valve Wafer Type PN 1.6 with SG Iron Disc - Gear Operated Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Salient Features

Design Standard IS 13095 / BS EN 593 (BS 5155).
Wafer Type.
Gear Operated.
S.G Iron construction.
S.G Iron disc which is accurately guided between the two stems.
Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges.
Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes.
Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
*Valves with Neoprene / Viton / Silicon lining can also be provided at nominal extra cost.
PN 1.0

Test Pressure (Hydrostatic) :

Shell : 1.5 MPa
Seat : 1.1 MPa
Maximum Working Pressure : 1.0 MPa
Maximum Working Temperature : 90C
PN1.6

Test Pressure (Hydrostatic) :

Shell : 2.4 MPa
Seat : 1.76 MPa
Maximum Working Pressure : 1.6 MPa
Maximum Working Temperature : 90C

Materials

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Gear Box Assembly			1
2	Gasket	Steam Jointing Sheet	IS2712 Gr. W/3	1
3	Packing Bush	Bronze	IS 318 Gr. LTB 2	1
4	Upper Stem	Stainless Steel	IS 6603 Gr. 12 Cr12	1
5	Body	S.G Iron	IS 1865 Gr. 400/15	1
6	Disc	S. G Iron (Epoxy Coated)	IS 1865 Gr. 400/15	1
7	Taper Pin (Optional)	Stainless Steel	IS 6603 Gr. 12 Cr12	1
8	Bush	Bronze	IS 318 Gr. LTB 2	1
9	Lower Stem	Stainless Steel	IS 6603 Gr. 12 Cr12	1
10	O Ring	Nitrile Rubber	IS 5192 1	1
11	L- Key Screw	Carbon Steel		1
12	C Sunk Screw & Nuts	Carbon Steel		4 Each
13	Handwheel	Sheet Metal		1
14	Body Lining	EPDM / Nitrile	IS 5192 1	1
15	Name Plate	Aluminium		1

Sizes / Dimensions

Size (Inches)	Size (mm)	A	B	C ~	D ~
8	200	60 1.5	201.6	180	295
10	250	68 1.5	252.2	220	320
12	300	78 1.5	301.3	250	344
14#	350	85 3	352	280	380
16#	400	96 3	393.8	300	410
18#	450	108 3	442	330	466
20#	500	127 4	504.2	415	600
24#	600	146.5 4	593	440	610

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Butterfly Valves' category

1078G Butterfly Valve Wafer Type PN 2.5 With SG Iron Disc Minimum Order Quantity : 1 Working Temperature : High Color : Red, Black Usage : Industrial Warranty : Yes Pressure : High Pressure Material : Cast Iron

Send Inquiry

1078H Butterfly Valve Wafer Type PN 2.5 With SG Iron Disc-Gear Operated Minimum Order Quantity : 1 Working Temperature : High Color : Red, Black Usage : Industrial Warranty : Yes Pressure : High Pressure Material : Cast Iron

Send Inquiry

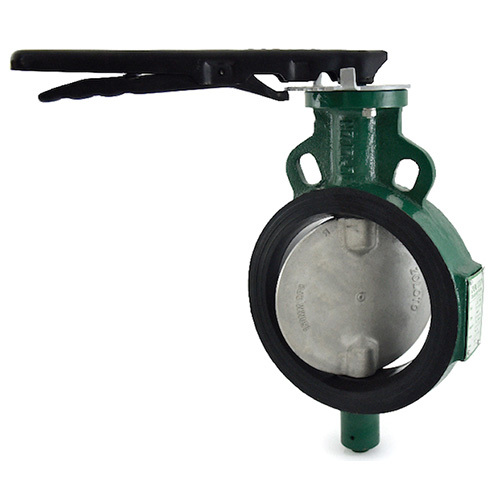

1078B Butterfly Valve Wafer Type PN 1.6 With SS 304 Disc Minimum Order Quantity : 1 Working Temperature : High Color : Green, Black Usage : Industrial Warranty : Yes Pressure : High Pressure Material : Stainless Steel
