1078C Butterfly Valve Wafer Type PN 1.6 With SS 304 Disc-Gear Operated

Get a Price/Quote

Product Details:

Usage Industrial
Material Cast Iron
Pressure High Pressure
Working Temperature High
Color Green, Black
Warranty Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1078C Butterfly Valve Wafer Type PN 1.6 With SS 304 Disc-Gear Operated Price And Quantity

Minimum Order Quantity 1 Unit

1078C Butterfly Valve Wafer Type PN 1.6 With SS 304 Disc-Gear Operated Product Specifications

Working Temperature High
Pressure High Pressure
Usage Industrial
Warranty Yes
Color Green, Black
Material Cast Iron

1078C Butterfly Valve Wafer Type PN 1.6 With SS 304 Disc-Gear Operated Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Salient Features

Design Standard IS 13095 / BS EN 593 (BS 5155).
Wafer Type.
Gear Operated.
S.G Iron construction.
Stainless Steel (CF8 / CF8M*) Disc which is accurately guided between the two stems.
Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges.
Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes.
Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
*Valves with Neoprene / Viton / Silicon lining and CF8M (S.S 316) Disc can also be provided at nominal extra cost.
PN 1.6

Test Pressure (Hydrostatic) :

Shell : 2.4 MPa
Seat : 1.76 MPa
Maximum Working Pressure : 1.6 MPa
Maximum Working Temperature : 90C

Materials

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Gear Box Assembly			1
2	Gasket	Steam Jointing Sheet	IS2712 Gr. W/3	1
3	Packing Bush	Bronze	IS 318 Gr. LTB 2	1
4	Upper Stem	Stainless Steel	IS 6603 Gr. 12 Cr12	1
5	Body	S.G Iron	IS 1865 Gr. 400/15	1
6	Disc	Stainless Steel	IS 3444 Gr. 1 / ASTM A 351 Gr. CF8	1
7	Name Plate	Aluminium		1
8	Bush	Bronze	IS 318 Gr. LTB 2	1
9	Lower Stem	Stainless Steel	IS 6603 Gr. 12 Cr12	1
10	O Ring	Nitrile Rubber	IS 5192 1	1
11	L Key Screw	Carbon Steel		1
12	C Sunk Screw & Nuts	Carbon Steel		4 Each
13	Handwheel	Sheet Metal		1
14	Body Lining	EPDM / Nitrile	IS 5192 1	1

Sizes / Dimensions

Size (Inches)	Size (mm)	A 1.5	B	C ~	D ~
8	200	60	201.6	180	295
10	250	68	252.2	220	320
12	300	78	301.3	250	344

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Butterfly Valves' category

1078K Butterfly Valve Wafer Type PN 1.6 With Electrical Actuator Minimum Order Quantity : 1 Pressure : High Pressure Usage : Industrial Color : Blue, Green Warranty : Yes Working Temperature : High Size : Various available

Send Inquiry

1078J Butterfly Valve Wafer Type PN 2.5 With SS 304 Disc-Gear Operated Minimum Order Quantity : 1 Pressure : High Pressure Usage : Industrial Color : Red, Black Warranty : Yes Working Temperature : High Size : Various available

Send Inquiry

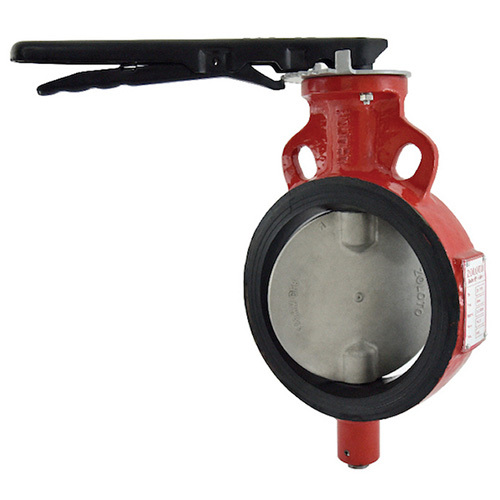

1078I Butterfly Valve Wafer Type PN 2.5 With SS 304 Disc Minimum Order Quantity : 10 Pressure : High Pressure Usage : Industrial Color : Red, Black Warranty : Yes Working Temperature : High Material : Stainless Steel
