1078 Butterfly Valve Wafer Type PN 1.6 with S G Iron Disc

Get a Price/Quote

Product Details:

Usage Industrial
Material Cast Iron
Pressure High Pressure
Media Water
Color Black, Green
Warranty Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1078 Butterfly Valve Wafer Type PN 1.6 with S G Iron Disc Price And Quantity

Minimum Order Quantity 1 Unit

1078 Butterfly Valve Wafer Type PN 1.6 with S G Iron Disc Product Specifications

Color Black, Green
Media Water
Pressure High Pressure
Material Cast Iron
Usage Industrial
Warranty Yes

1078 Butterfly Valve Wafer Type PN 1.6 with S G Iron Disc Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Salient Features

Design Standard IS 13095 / BS EN 593 (BS 5155).
Wafer Type.
Lever Operated.
S.G Iron construction.
S.G Iron disc which is accurately guided between the two stems.
Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges.
Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes.
Compatible to sandwich between flanges as per BS 10 Table D, E, F,H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
*Valves with Neoprene / Viton / Silicon lining can also be provided at nominal extra cost.
PN 1.6

Test Pressure (Hydrostatic) :

Shell : 2.4 MPa
Seat : 1.76 MPa
Maximum Working Temperature : 90C
Maximum Working Pressure : 1.6 MPa

Materials

P.No.	Name of Part	Material of Construction	Specification	Qty.
1	Flow Control Lever	Carbon Steel (Powder Coated)		1
2	Notch Plate	Carbon Steel (Powder Coated)		1
3	Packing Bush	PTFE		1
4	Upper Stem	Stainless Steel	IS 6603 Gr. 12 Cr12	1
5	Body	S.G Iron	IS 1865 Gr. 400/15	1
6	Disc	S.G Iron (Epoxy Coated)	IS 1865 Gr. 400/15	1
7	Name Plate	Aluminium		1
8	Bush	PTFE / Bronze	/ IS 318 Gr. LTB 2	1
9	Lower Stem	Stainless Steel	IS 6603 Gr. 12 Cr12	1
10	O Ring	Nitrile Rubber	IS 5192 1	1
11	L Key Screw	Carbon Steel		1
12	C Sunk Screw & Nuts	Carbon Steel		2 Each
13	Locking Washer	Spring Steel		2
14	Body Lining	EPDM / Nitrile	IS 5192 1	1

Sizes / Dimensions

Size (Inches)	Size (mm)	A 1.5	B	C ~	D ~	E ~
1 1/2	40	33	40.6	57	113	260
2	50	43	52.4	73	125	260
2 1/2	65	46	67	80	140	260
3	80	46	81.3	88	145	260
4	100	52	101	110	178	260
5	125	56	127.1	122	190	260
6*	150*	56	151	151	204	260

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Butterfly Valves' category

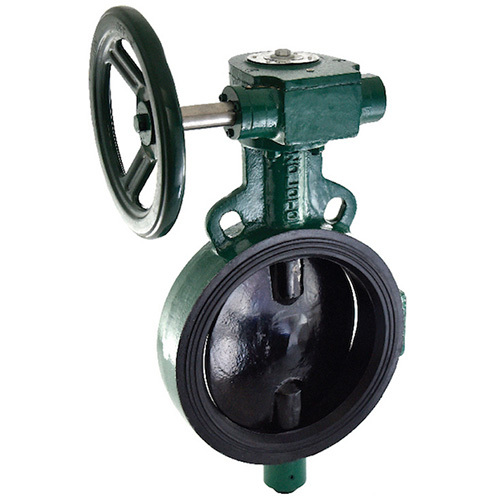

1078A Butterfly Valve Wafer Type PN 1.6 with SG Iron Disc - Gear Operated Minimum Order Quantity : 1 Color : Black, Green Pressure : High Pressure Working Temperature : High Usage : Industrial Warranty : Yes

Send Inquiry

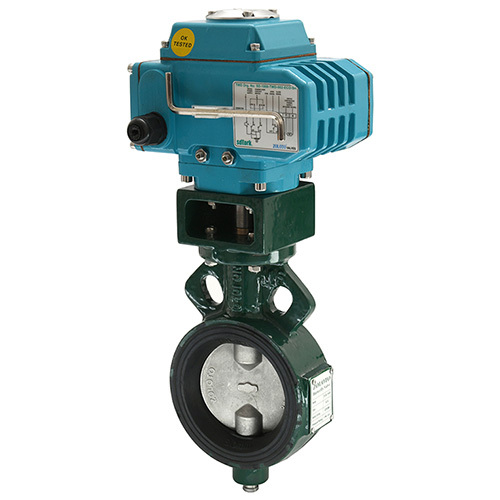

1078K Butterfly Valve Wafer Type PN 1.6 With Electrical Actuator Minimum Order Quantity : 1 Color : Blue, Green Pressure : High Pressure Working Temperature : High Usage : Industrial Warranty : Yes Size : Various available

Send Inquiry

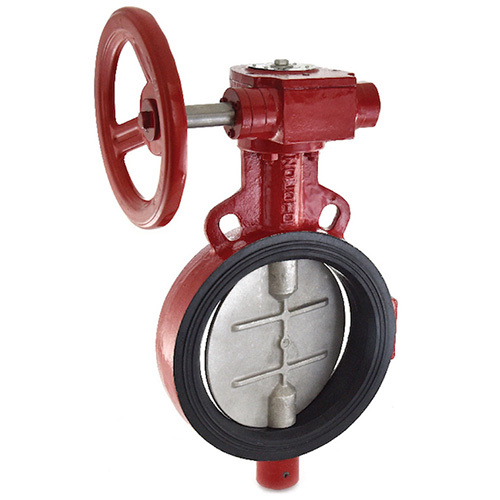

1078J Butterfly Valve Wafer Type PN 2.5 With SS 304 Disc-Gear Operated Minimum Order Quantity : 1 Color : Red, Black Pressure : High Pressure Working Temperature : High Usage : Industrial Warranty : Yes Size : Various available

Send Inquiry

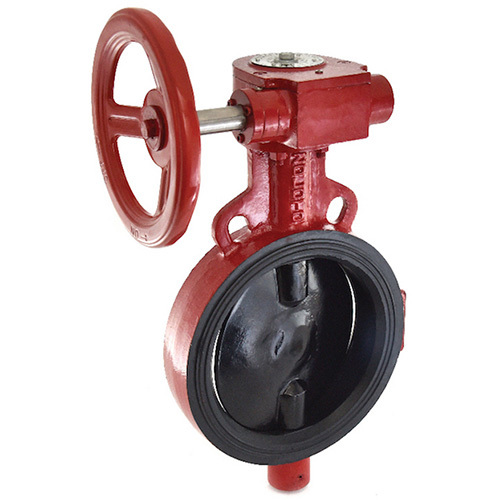

1078H Butterfly Valve Wafer Type PN 2.5 With SG Iron Disc-Gear Operated Minimum Order Quantity : 1 Color : Red, Black Pressure : High Pressure Working Temperature : High Usage : Industrial Warranty : Yes
