1040B Forged Brass Compact Pressure Reducing Value-Screwed

Get a Price/Quote

Product Details:

Features High Quality
Material Brass
Usage Pipe Fitting
Size Various
Pressure High Pressure
Color Golden, Green
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1040B Forged Brass Compact Pressure Reducing Value-Screwed Price And Quantity

Minimum Order Quantity 1 Unit

1040B Forged Brass Compact Pressure Reducing Value-Screwed Product Specifications

Usage Pipe Fitting
Features High Quality
Material Brass
Color Golden, Green
Pressure High Pressure
Size Various

1040B Forged Brass Compact Pressure Reducing Value-Screwed Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Salient Features

Screwed Female Ends to IS 554 / BS 21 / ISO 7.
Most ideal for sensitive and a consistent fluid regulation.
Diaphragm-less, Piston Type.
Piston-operated, hence more reliable than conventional diaphragm type PRV.
Rugged body, compact-sized, easy to install.
Provided with Premium Quality Nitrile Rubber ORings.
Demands low maintenance and virtually noiseless.
Most of the critical working components have a distinct edge of being hot brass forged.
Facility provided to install a Pressure Gauge of 1/4 BSP size to gauge the critically relevant Outlet Pressure.
Designed to suit every application requiring accurate pressure ratings.
All O rings are of superior food grade material, hence ensuring absolute zero health hazard.

Test Pressure (Hydrostatic) :

Shell : 35 bar
Maximum Upstream Pressure : 25 bar
Maximum Working Temperature : 80C
NOTE : At maximum inlet pressure 25 bar, the minimum outlet pressure will be 5.5 bar

Materials

P.No.	Name of Part	Material of Construction	Specification	Quantity
1	Plug	Forged Brass	IS 6912 Gr. FLB	1
2	O Ring	Nitrile Rubber	IS 5192 1	1
3	Bonnet	Forged Brass	IS 6912 Gr. FLB	1
4	Disc Holder	Forged Brass	IS 6912 Gr. FLB	1
5	Body	Forged Brass	IS 6912 Gr. FLB	1
6	Chamber	Forged Brass	IS 6912 Gr. FLB	1
7	Piston	Forged Brass / Bronze	IS 6912 Gr. FLB / IS 318 Gr. LTB 2	1
8	Disc	Nitrile Rubber	IS 5192 1	1
9	O Ring	Nitrile Rubber	IS 5192 1	1
10	O Ring	Nitrile Rubber	IS 5192 1	1
11	O Ring	Nitrile Rubber	IS 5192 1	1
12	Spring	Spring Steel	EN 47 Gr. B	1
13	Adjustable Ring	Forged Brass	IS 6912 Gr. FLB	1
14	CAP	PVC	IS 15225	1

Sizes / Dimensions

Size (Inches)	Size (mm)	A 1.5	B	C ~	D ~
1/2	15	62	1/2	68	44
3/4	20	62	3/4	68	44
1	25	86	1	93	61
1 1/4	32	91	1 1/4	99	65
1 1/2	40	91	1 1/2	99	65
2	50	91	2	101	71

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Pressure Reducing Valves' category

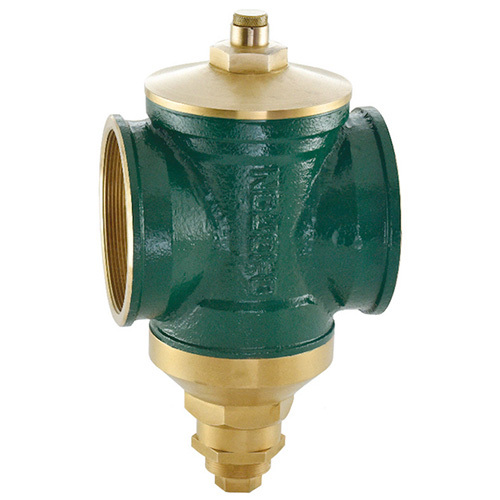

1040A Bronze Compact Pressure Reducing Valve-Screwed Minimum Order Quantity : 1 Color : Golden, Green Pressure : High Pressure Size : Various Usage : Pipe Fitting Features : High Quality Material : Bronze
